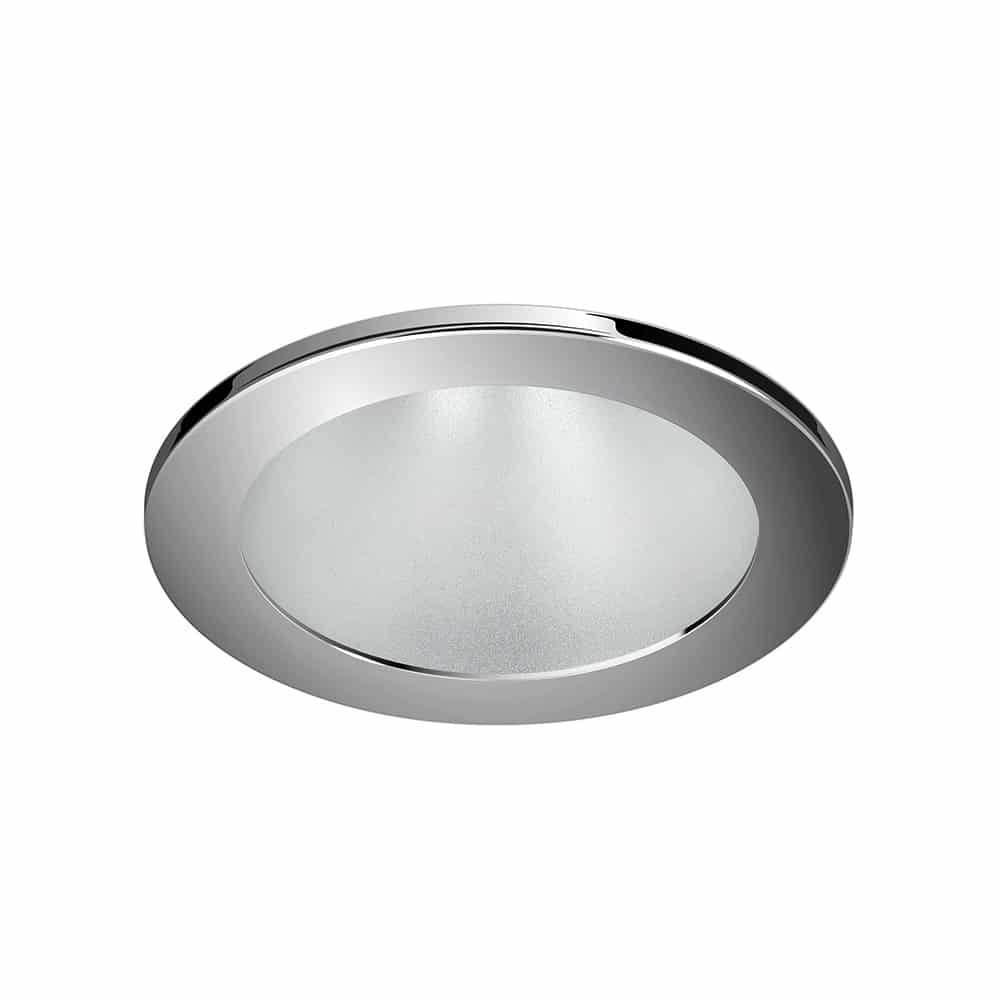

ORBIT

This high-performance LED downlight has an optimised thermal management system and comes available with a wide choice of interchangable accesssories and controls.

Read More...
download Product Datasheet

for any product enquiries call the team on   01727 836 695

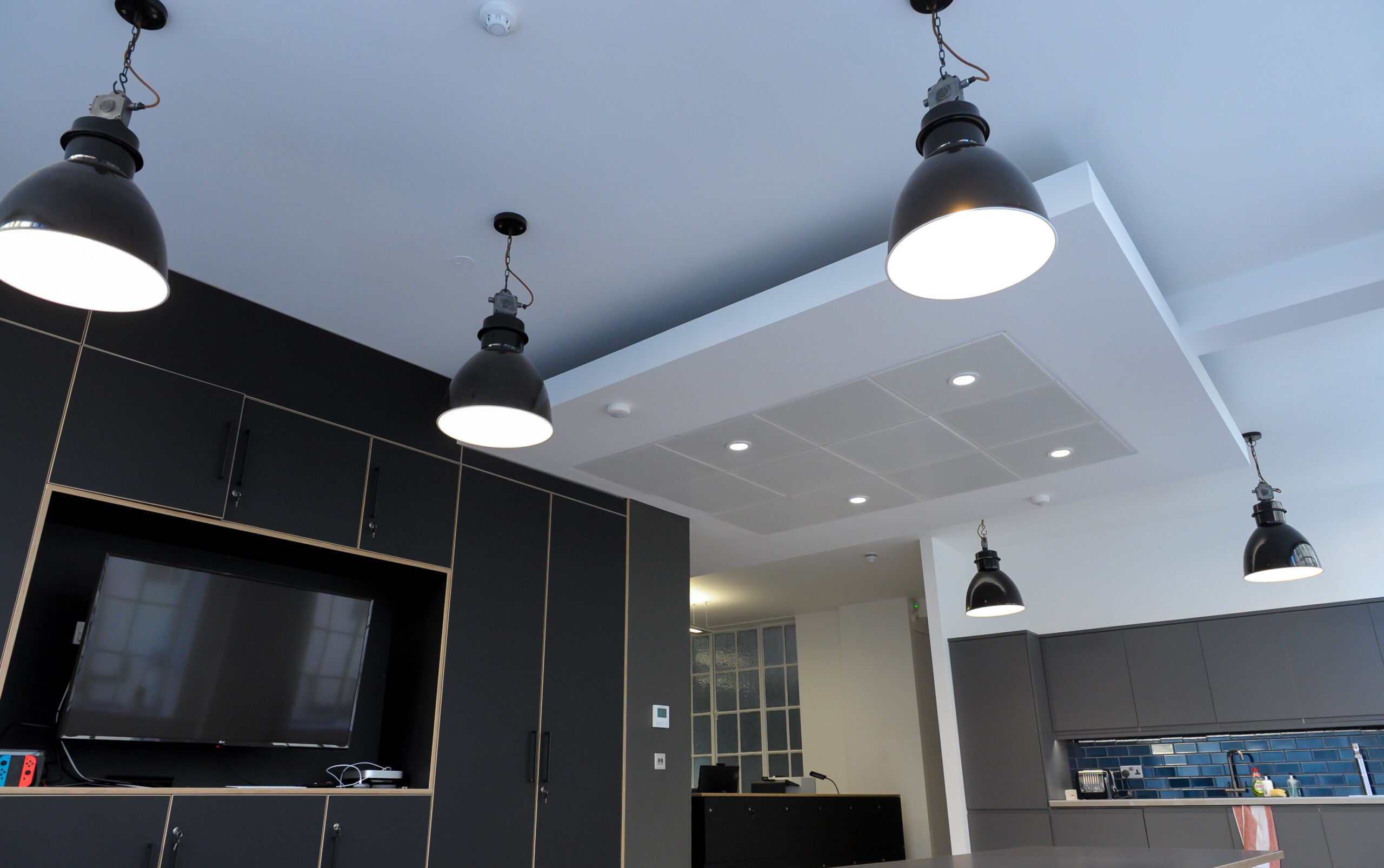

Most frequently featured in educational facilities, leisure complexes and office premises, this first-rate downlight is also the ideal lighting solution for residential properties and the hospitality industry. With interchangeable accessories available with this luminaire, it has never been simpler to ensure the best finish.



This recessed lighting solution has an optimised thermal management system and all options and accessories are made from high-quality materials that have been manufactured to provide uncompromised luminance. The Orbit is also available with emergency options and a choice of reflectors as well as IP54 and IP65 Bezel alternatives.

  • 60° satin-etched reflector
  • Die-cast twist and lock bezel with interchangeable accessories
  • Optimised thermal management system
  • IP54 and IP65 bezel options
  • Emergency options
  • Life up to >60,000 hours (L70 / B10)
  • Available in two system performance levels

Typical Applications


General office areas, conference rooms, reception areas, educational facilities, retail units, bars, restaurants, hotels and leisure facilities and residential properties.

Product CodeOutput (lm)CCT (ºK)Wattage (W)Efficacy (lm/W)
ADVANCED
ORB11/3K950300011.583
ORB111025400011.590
ORB21/3K182530002187
ORB21197540002195
ORB30/3K2700300030.589
ORB302925400030.596
ORB48/3K420030004888
ORB48455040004895
BASIC*
ORB9102540009.5108
ORB171800400017.5103
ORB272750400027102
*This range is only available as Non-Dimmable and 4000K



Product Options




Option Code
DALIDALI/DSI Dimmable Driver
M3 Hour Maintained Emergency
MZ3 Hour DALI Maintained Emergency
BWBezel – Brilliant White (RAL9016)
WHBezel – White (RAL9010)
CHBezel – Chrome
BABezel – Brushed Aluminium
IMIntegral Emergency Indicator
MF5050° Multi-Faceted Reflector
SP4040° Specular Reflector
IP65IP65
IP54IP54
BTCasambi Wireless Network (inc Dim)
Product Variation (state required specification)
