Versa-Line is the Swiss Army knife of the lighting world, achieving low glare, high uniformity, high efficiency and high colour rendering in a single modular luminaire.

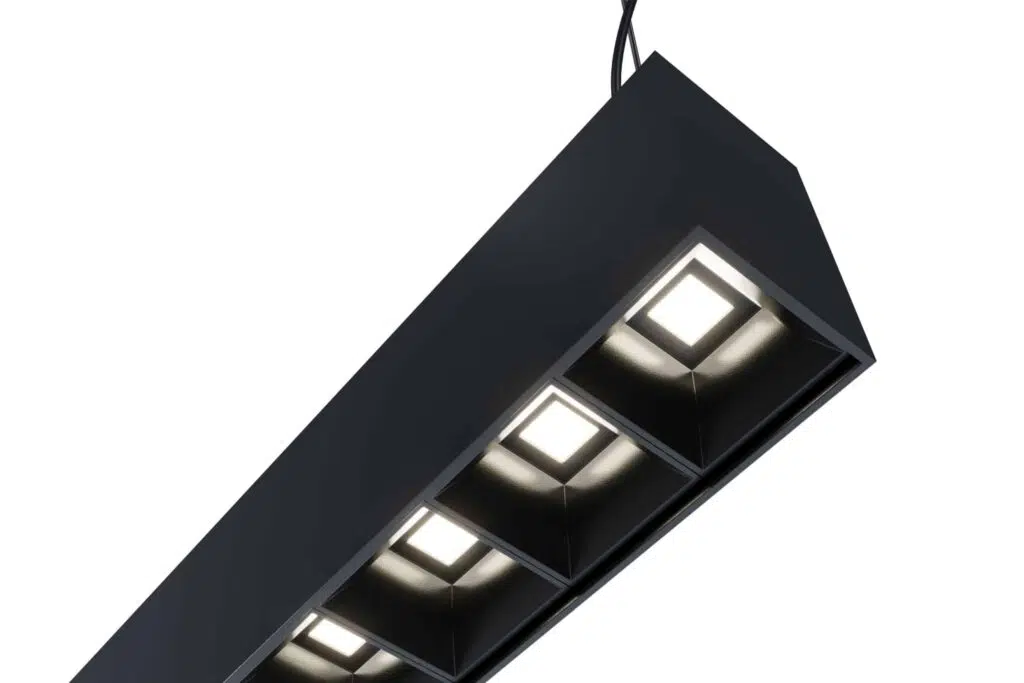

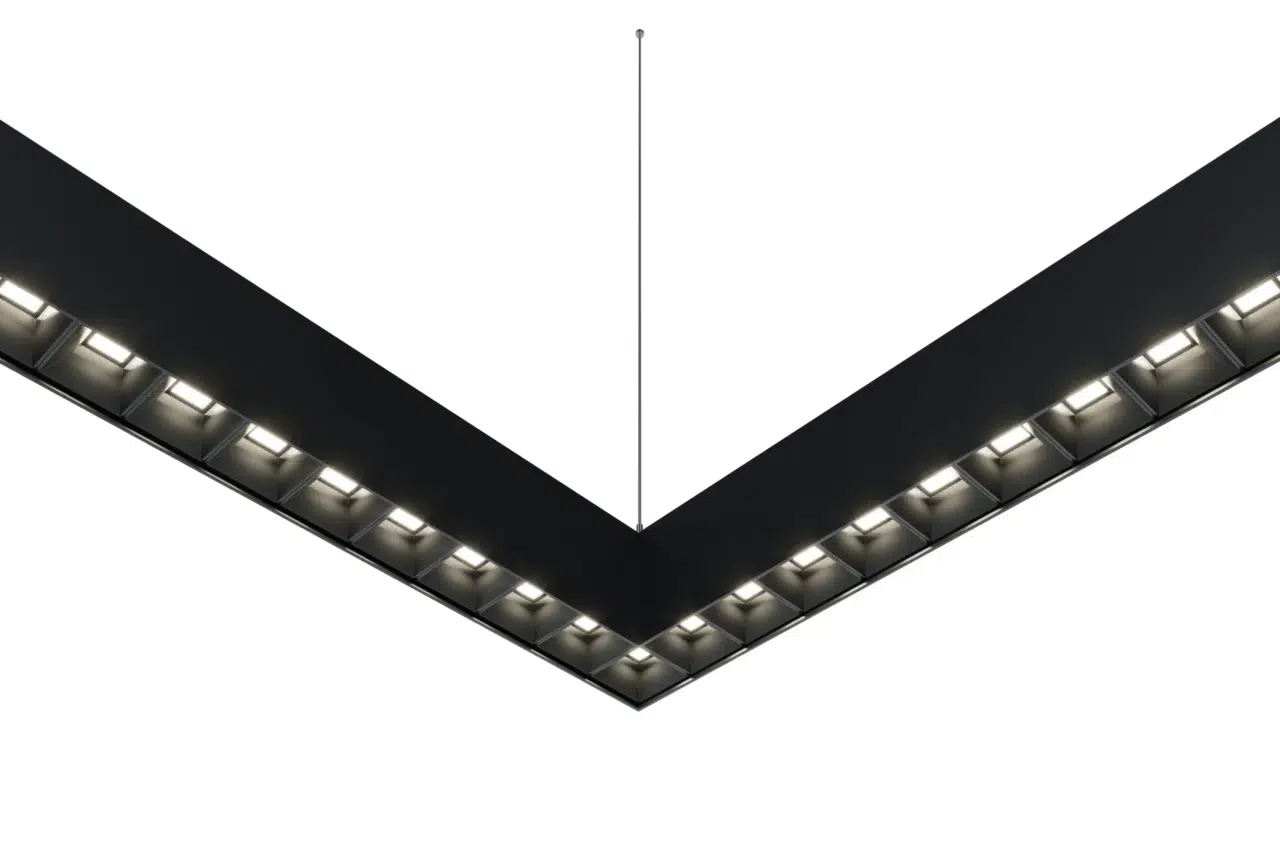

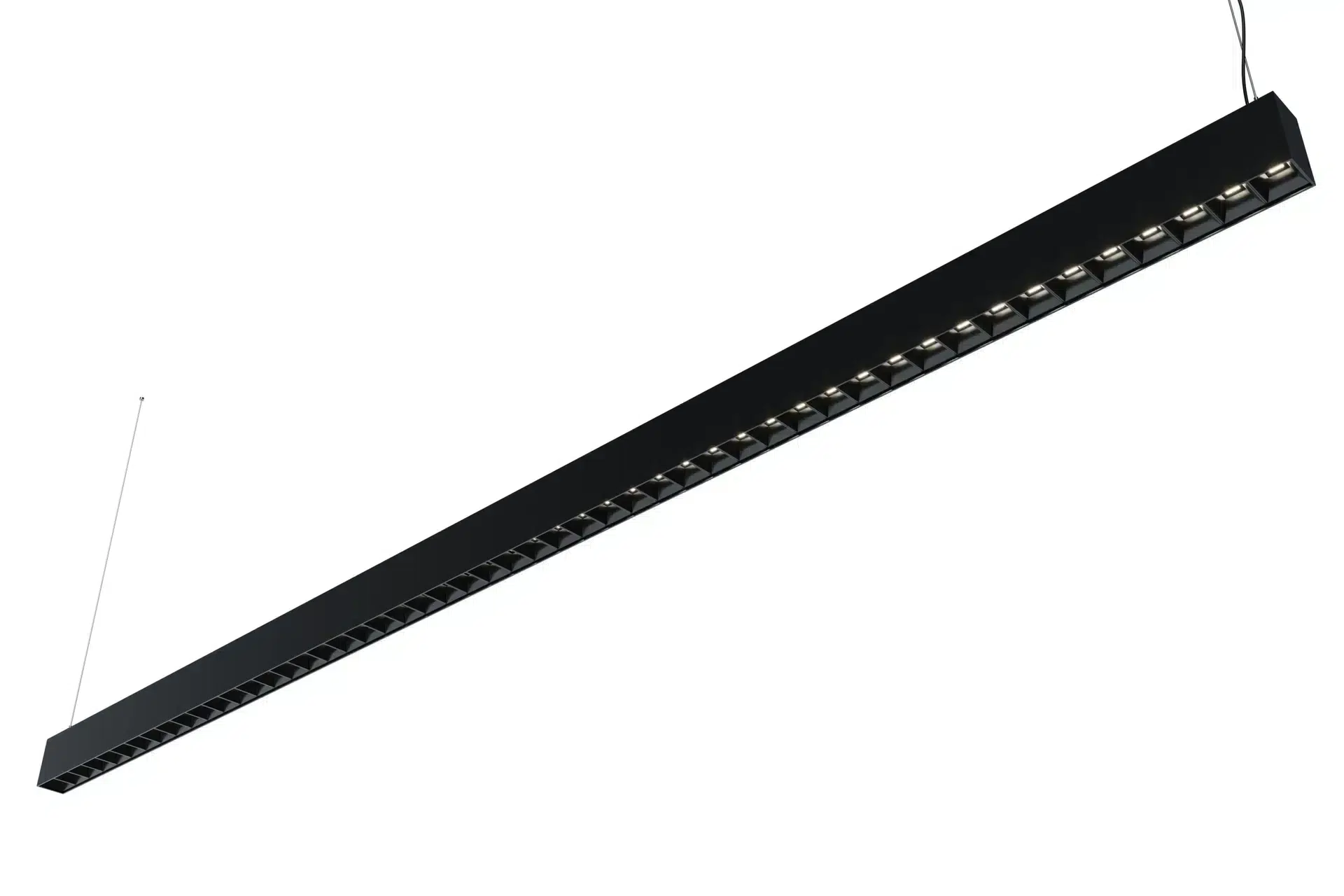

The Versa-Line Anti-Glare linear LED fitting is supplied as a surface, recessed or suspended luminaire with direct only, or direct/indirect light distribution options. Suspension is made simple using a single-point ceiling bracket with a 2m adjustable stainless steel wire system. The linear aluminium profile is available in 10 standard lengths up to 3092 mm, with bespoke lengths and shapes available to order upon request. The ultra low glare rating is achieved utilising the Vossloh Light&Dark system to recess and conceal the LEDs, and the LEDIL LINDA-UP lens with wide beam spreading for indirect illumination contributing towards UGR>16.
Read our blog here to discover why Versa-Line is the future of workplace lighting
| Product Code (mm) |
LED Wattage |
Lumen Output |
Lumen / Watt |
Colour Temperature |
Beam Angle |
| VLS572 | 8 | 1380 | 182 | 4000K | 65° |
| VLS852 | 11 | 2070 | 182 | 4000K | 65° |
| VLS1132 | 15 | 2760 | 182 | 4000K | 65° |
| VLS1412 | 19 | 3450 | 182 | 4000K | 65° |
| VLS1692 | 22 | 4140 | 182 | 4000K | 65° |
| VLS1972 | 26 | 4830 | 182 | 4000K | 65° |
| VLS2252 | 30 | 5520 | 182 | 4000K | 65° |
| VLS2532 | 34 | 6210 | 182 | 4000K | 65° |
| VLS2812 | 37 | 6900 | 182 | 4000K | 65° |
| VLS3092 | 41 | 7107 | 182 | 4000K | 65° |
| Section | Option Code | Description |
|---|---|---|
| 1 – EMERGENCY | /NE | No Emergency |
| /M | 3 Hour Maintained Emergency | |
| /MZ | 3 Hour Maintained DALI Emergency | |
| 2 – CONTROL | /ND | Non-Dim |
| /DA | DALI Dimmable Driver | |
| /BTC | Casambi Dimmable Driver | |
| 3 – FINISH | /9005 | RAL9005 Black (light output -11%) |
| /9016 | RAL9016 White | |
| 4 – CCT | /4K | 4000K LED |
| /3K | 3000K LED (light output -1%) | |
| /TW | 2700K – 6500K LED | |
| 5 – BEAM ANGLE | /R65 | 65 degree lens (light output -1%) |
| /R90 | 90 degree lens | |
| 6 – CRI | /80 | CRI>80 |
| /90 | CRI>90 (light output -15%) |
