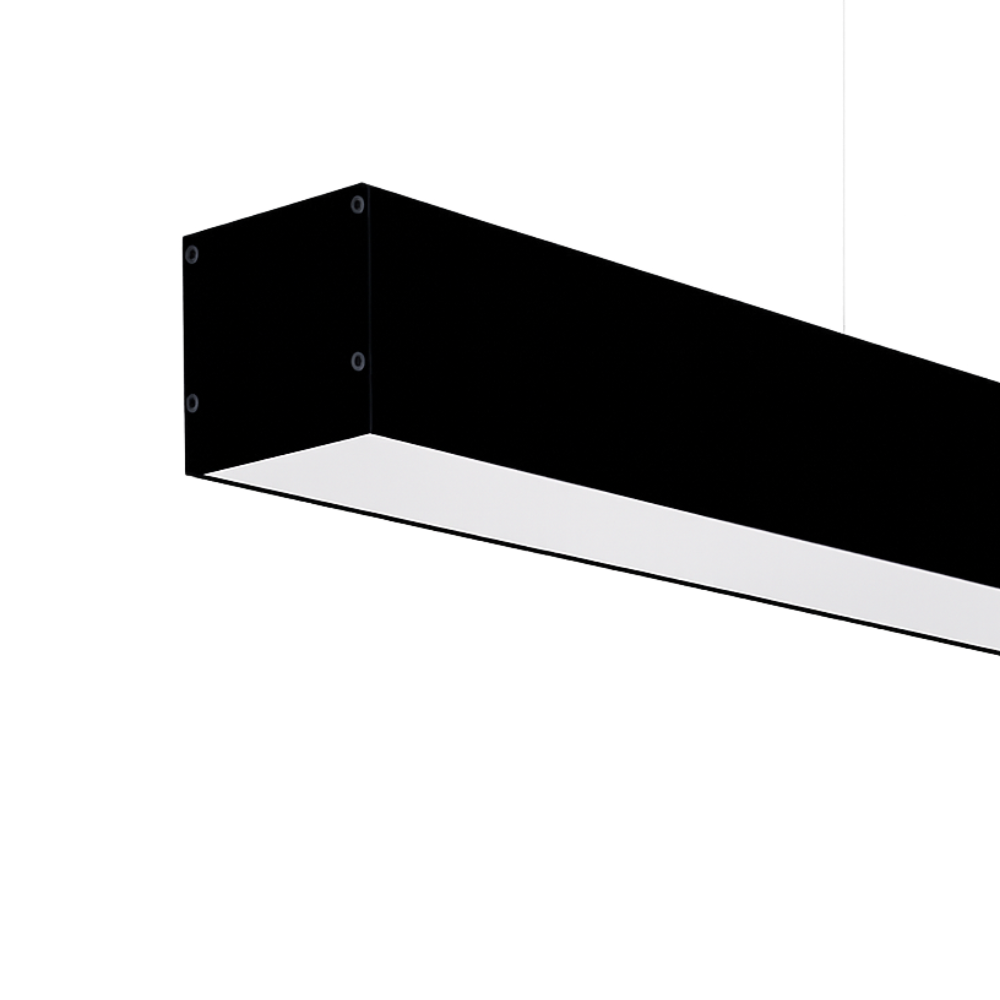

The M-Line 82 low glare linear LED light is supplied as a suspended fitting as standard but the profile can be utilised for surface mounting. This is achieved by directly fixing through the rear of the profile. Suspension is made simple using a single-point ceiling bracket with a 2m adjustable stainless steel wire system. The LED linear luminaire aluminium profile is available in standard lengths up to 4500mm with bespoke lengths and shapes available to order upon request. The Low UGR is achieved with a specialised polycarbonate diffuser.
We are now sending out our M-Line products pre-flexed to make installation easy for you!

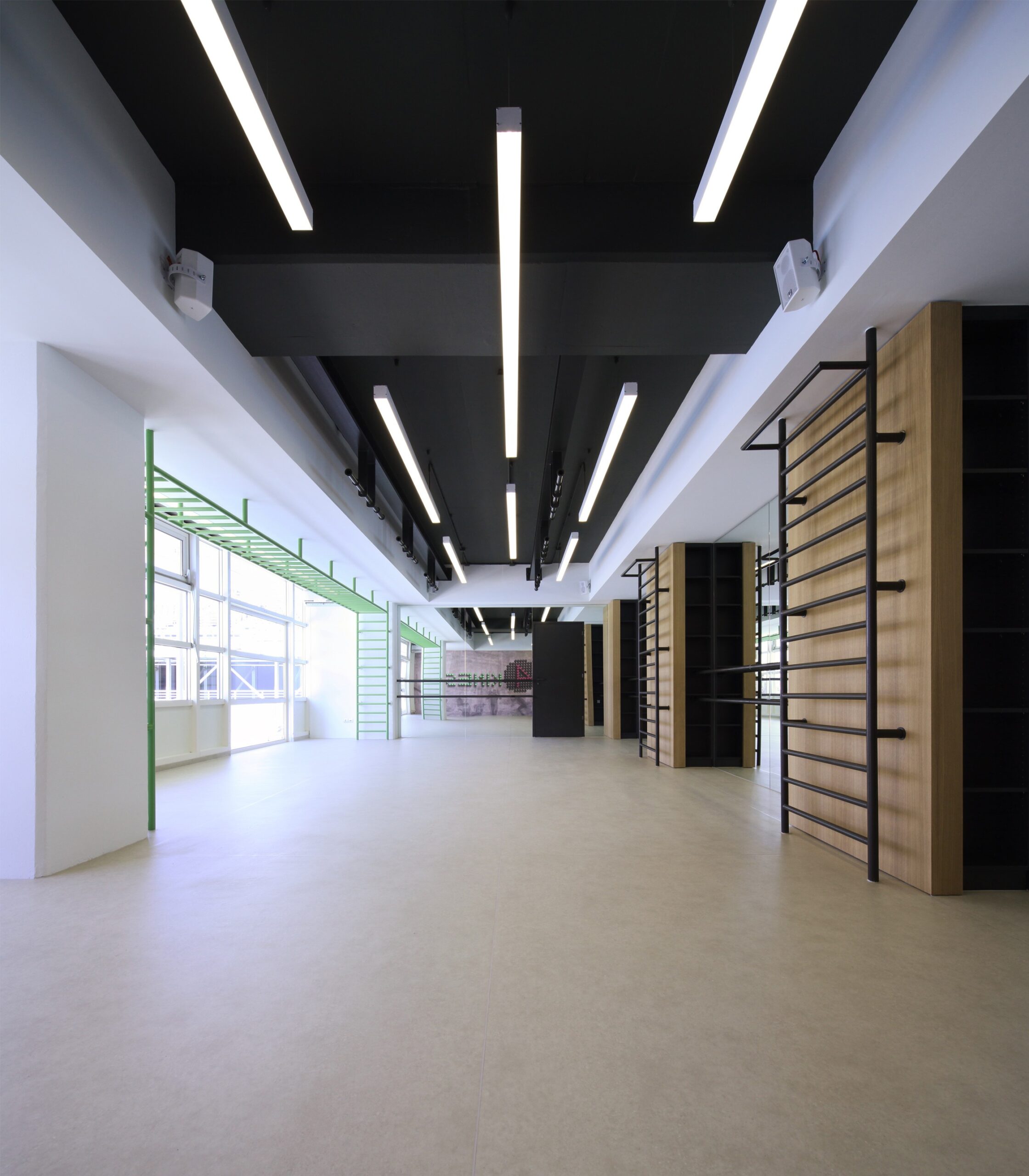

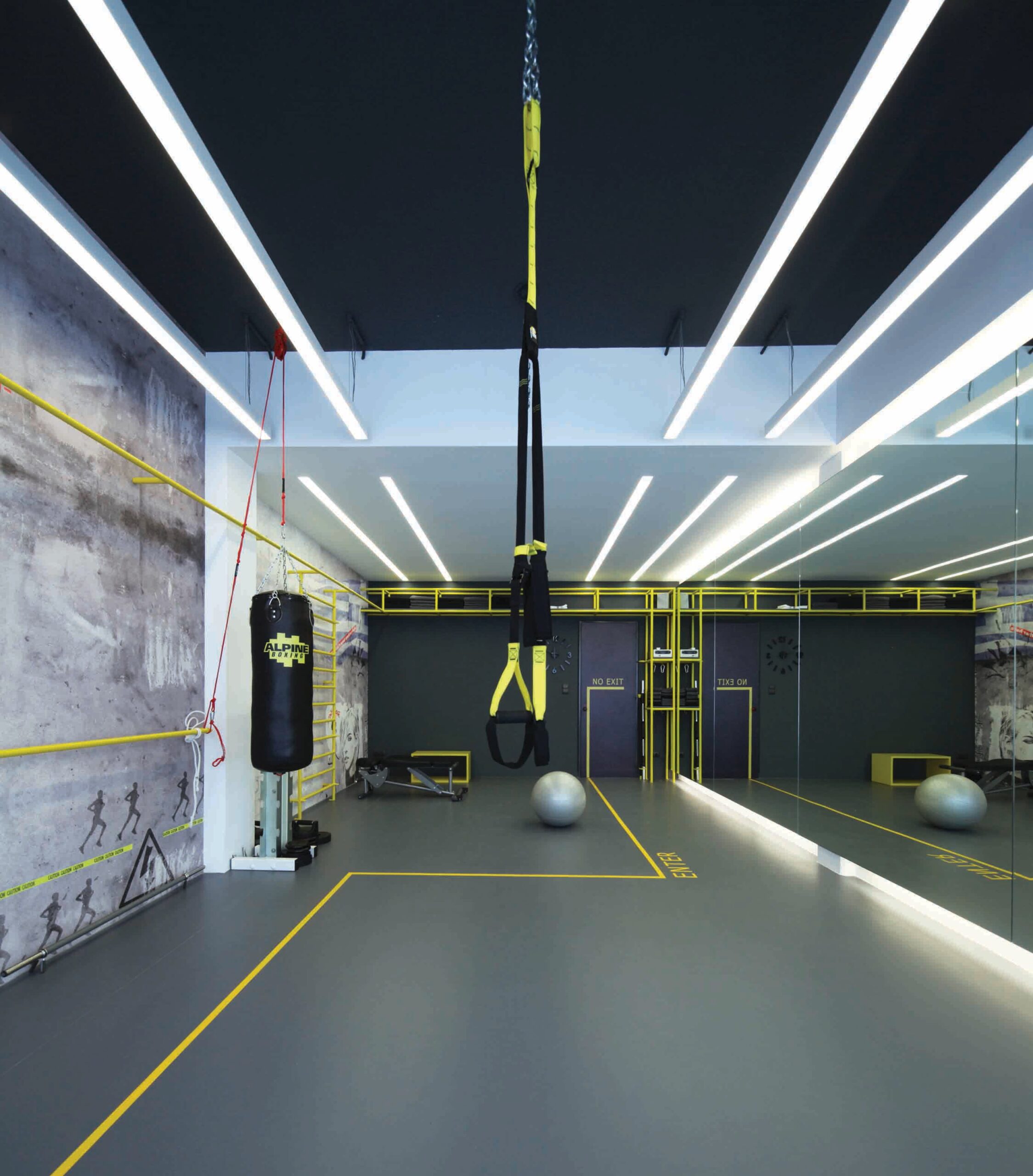

General Office Areas, Conference Rooms, Educational Facilities, Reception Areas & Healthcare Facilities,
No downloads available.
| Product Code | LED Wattage |
Lumen Output |
Lumen/ Watt |
Colour Temp. |
Size |
| MLE82/596 | 10W | 1548 | 155 | 4000K | 596mm |
| MLE82/876 | 15W | 2322 | 155 | 4000K | 876mm |
| MLE82/1157 | 20W | 3096 | 155 | 4000K | 1157mm |
| MLE82/1437 | 25W | 3870 | 155 | 4000K | 1437mm |
| MLE82/1718 | 30W | 4644 | 155 | 4000K | 1718mm |
| MLE82/1998 | 35W | 5418 | 155 | 4000K | 1998mm |
| MLE82/2279 | 40W | 6192 | 155 | 4000K | 2279mm |
| MLE82/2559 | 45W | 6966 | 155 | 4000K | 2559mm |
| MLE82/2840 | 50W | 7740 | 155 | 4000K | 2840mm |
| MLE82/3120 | 55W | 8514 | 155 | 4000K | 3210mm |
| MLE82/3411 | 60W | 9288 | 155 | 4000K | 3411mm |
| MLE82/3681 | 65W | 10062 | 155 | 4000K | 3681mm |
| MLE82/3962 | 70W | 10836 | 155 | 4000K | 3962mm |
| MLE82/4242 | 75W | 11610 | 155 | 4000K | 4242mm |
| MLE82/4523 | 80W | 12384 | 155 | 4000K | 4523mm |
| Section | Option Code | Description |
|---|---|---|
| 1 – EMERGENCY | Leave blank if no emergency | |
| /M | Emergency | |
| /MZ | DALI Emergency | |
| 2 – CONTROL | /ND | Non Dimmable |
| /DA | DALI Dimmable | |
| /BTC | Casambi Dimmable | |
| 3 – FINISH | /9016 | RAL9016 White |
| /9005 | RAL9005 Black | |
| /9006 | RAL 9006 Grey | |
| 4 – CCT | /4K | 4000K LED |
| /3K | 3000K LED | |
| 5 – CRI | /80 | CRI>80 |
